electric lifting winch

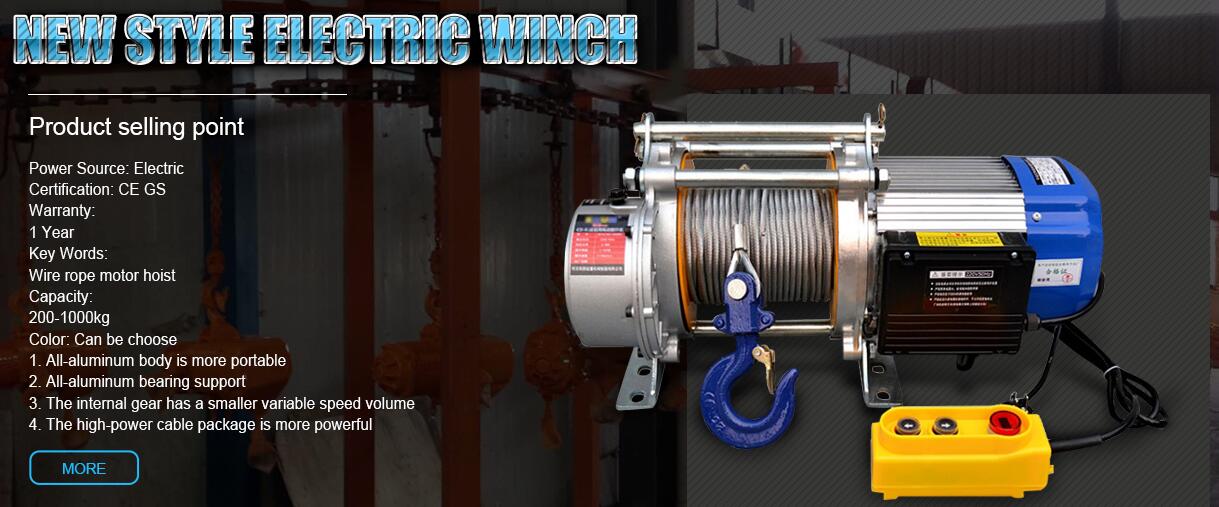

KCD type electric hoist winch is a kind of electric winch, apply to ground and air field, widely used in the construction industry, with the feature of large throughput, hoisting height is high, stable and reliable operation and so on.

This winch the mainly application fields as: used for residential buildings, lifting ash brick, dig well to carry the soil, depot, shopping, malls, hotels, factories and mines, small individual workshop for any angle of handing, lifting loading and unloading, is the most optimal small promotion tools in domestic, also widely used in small and medium-size houses, high-rise building to decorate, hanging floor, to dig a well carry soil, it is the common machinery for lifting work in factory and warehouse and individuals.

Feature:

1) The product we produced is in compliance with the nationalstandard.

2) The design is reasonable

3) The materials are of good quality,

4) The structure is advanced.

5) The appearance is beautiful and the size is compact,.

Product type	Rope Type	Voltage (V)	Power (kw)	weight (kg)	speed (m/min)	Height (m)	Rope diameter (mm)	Net weight (kg)
300-600	Single	380	0.6	300	16	30\60	5	34
	Double			600	8
500-1000	Single	380	1.1	500	14	30-100	6	49
	Double			1000	7
500-1000	Single	380	1.5	500	25	30-100	6	55
	Double			1000	12.5
500-1000	Single	380	1.5	500	12	30-100	6	55
	Double			1000	6
750-1500	Single	380	1.5	750	18	30-100	7.7	65
	Double			1500	9
1000-2000	Single	380	3.0	1000	16	30-100	11	142
	Double			2000	8
400-800	Single	220	1.6	400	14	30\60	6	40
	Double			800	7
