Mini lifting equipment hoist

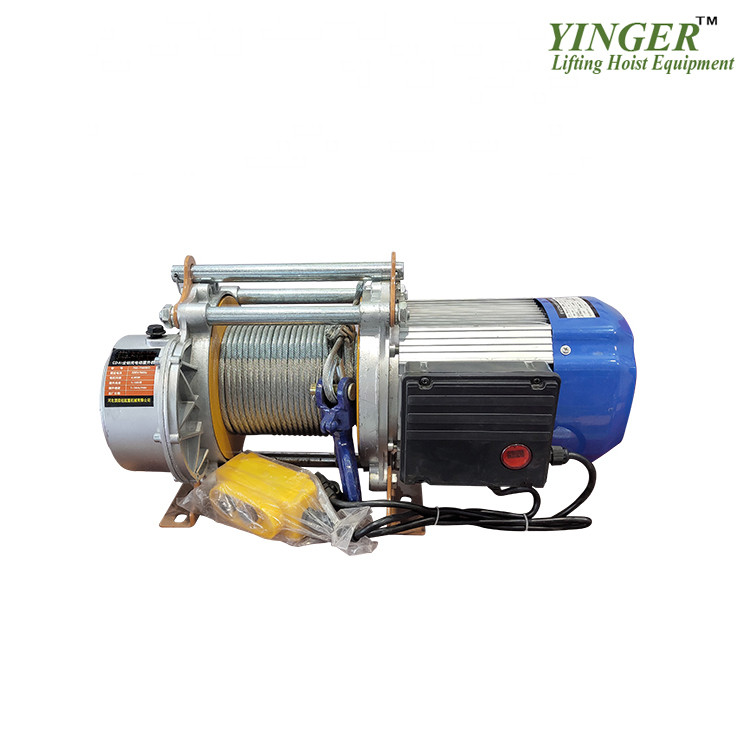

KCD type electric hoist winch is a kind of electric winch, suitable for ground and aerial fields, and widely used in the construction industry. It has the characteristics of large output, high lifting height, stable and reliable operation, etc.

The main application areas of the winch are: used in residential construction, lifting ash bricks, digging wells and transporting soil, warehouses, shopping centers, shopping malls, hotels, factories and mines, small single workshops, used for handling and lifting at any angle Loading and unloading is the most ideal small promotion tool in China. It is also widely used in the decoration of small and medium-sized houses, high-rise buildings, hoisting floors, digging wells and soil, etc. It is a common machinery and individual for lifting operations in factories and warehouses.

Produce Description :

KCD type electric hoist winch is a kind of electric winch, apply to ground and air field, widely used in the construction industry, with the feature of large throughput, hoisting height is high, stable and reliable operation and so on.

This winch the mainly application fields as: used for residential buildings, lifting ash brick, dig well to carry the soil, depot, shopping, malls, hotels, factories and mines, small individual workshop for any angle of handing, lifting loading and unloading, is the most optimal small promotion tools in domestic, also widely used in small and medium-size houses, high-rise building to decorate, hanging floor, to dig a well carry soil, it is the common machinery for lifting work in factory and warehouse and individuals.

Feature:

1) The product we produced is in compliance with the nationalstandard.

2) The design is reasonable

3) The materials are of good quality,

4) The structure is advanced.

5) The appearance is beautiful and the size is compact,

Product type	Rope Type	Voltage (V)	Power (kw)	weight (kg)	speed (m/min)	Height (m)	Rope diameter (mm)	Net weight (kg)
300-600	Single	380	0.6	300	16	30\60	5	34
	Double			600	8
500-1000	Single	380	1.1	500	14	30-100	6	49
	Double			1000	7
500-1000	Single	380	1.5	500	25	30-100	6	55
	Double			1000	12.5
500-1000	Single	380	1.5	500	12	30-100	6	55
	Double			1000	6
750-1500	Single	380	1.5	750	18	30-100	7.7	65
	Double			1500	9
1000-2000	Single	380	3.0	1000	16	30-100	11	142
	Double			2000	8
400-800	Single	220	1.6	400	14	30\60	6	40
	Double			800	7
