pickeup crane

1. Vehicle-mounted electric crane, powered by DC12V vehicle-mounted power supply. Especially suitable for outdoor live electric places.

2. Wide range of uses, mainly used for light trucks, trucks, loading and unloading platforms, platforms. Outstanding features, compact structure, single size, lightest weight, and smallest space.

Product Description

Model	300kg	400kg	500kg	500kg
power	1150W	1450W	2200W	3000W
Wire rope width	5mm	6mm	7mm	7mm
operating hours	1	1	1	1-2
Voltage	220V	220V	220V	380V
Running speed	12m/min	12m/min	14m/min	14m/min

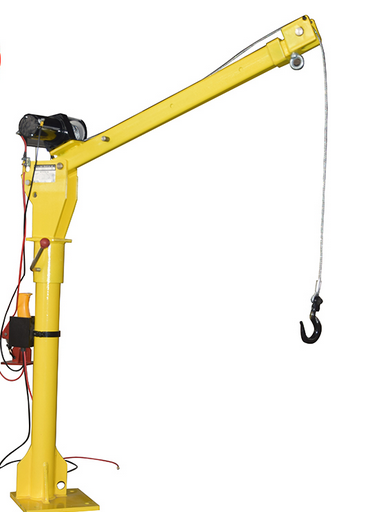

12V mini truck crane Mobile electric pickup crane manufacture

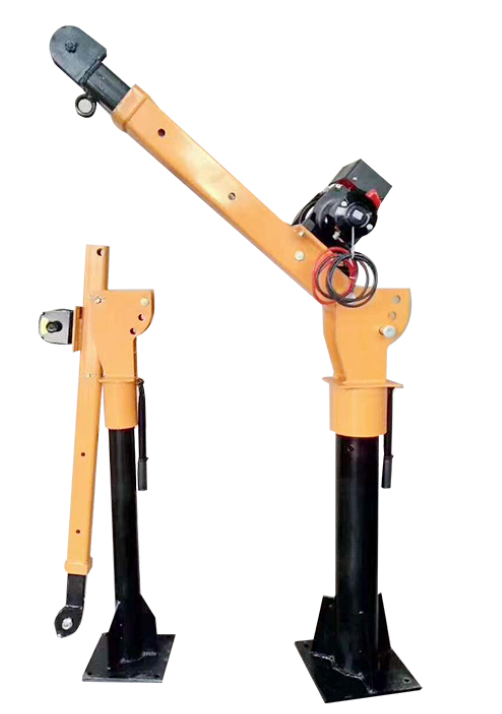

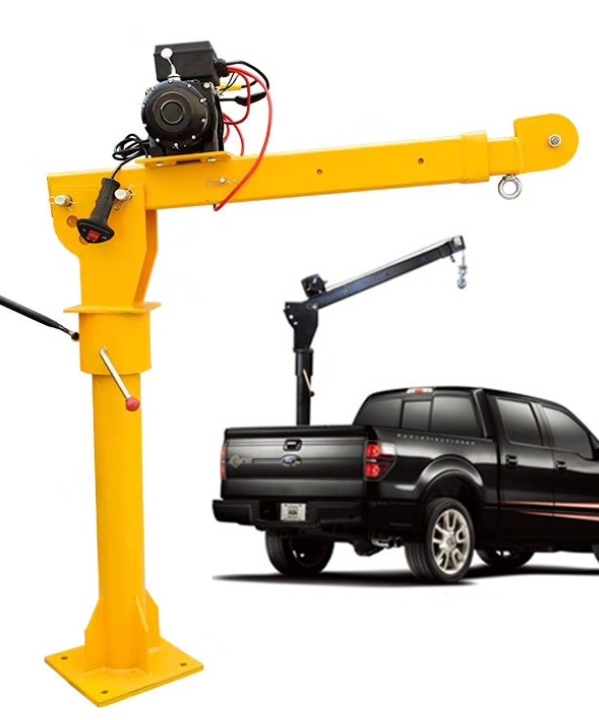

Product Name: 12V mini truck crane

Features

Compact, easy to install

Max loading and unloading capacity:6000lbs

Simple to operate

360° Free manual rotation

All shafts and pins stainless steel

Specification of 12V mini truck crane

1. The maximum lifting weight: 500 kilograms

2. Crane jib height: adjustable minimum 1.1 meters, maximum 1.95 meters

3. Suspension arm length: hook whereabouts ground and main rod distance 0.9-1.5 meters adjustable, 3 hole positioning pin hole adjustable.

4. Source: 12 v, 24 v, 220 v, 380 v or manual winding optional.

5. Wire diameter: 4.8mm, length of 4.5 m.

6. Rocker arm can fold, fold after clear height of 1.35 meters.

7. Rotary arm ways: manual cantilever

8. Installation base size: 250 mmx250mmx18mm

9. The net weight:58.5kg

10. The brake forms: has the diaphragm automatic brake system, ensure load ascending, descending, impending, self-locking function.

11. Material: column diameter of 83 mm thickness 6 mm suspension arm (rectangular square tube) outer tube diameter 73 x and x 5 mm double wall thickness 10 mm is made of high quality seamless steel pipe

Appliance for 12V mini truck crane

1.vehicle-mounted electric crane ,with DC12V Vehicle power as power .Specially suitable in outdoor on power place .

2.it is widely used ,mainly used for light-weight wagon ,Vans, loading dock ,platform .Outstanding feature ,compact structure , single size , lightest weight take up minimal room .

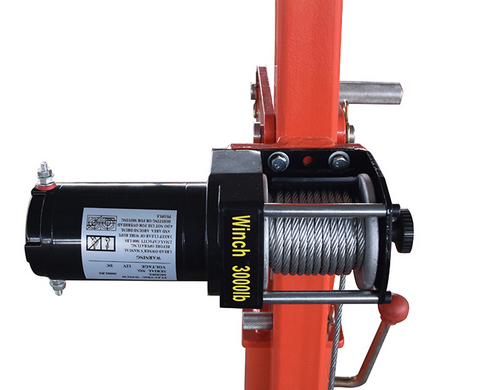

3.HP1000 matched with 3000lbs winch ,is the best ideal option for lifting little object.
