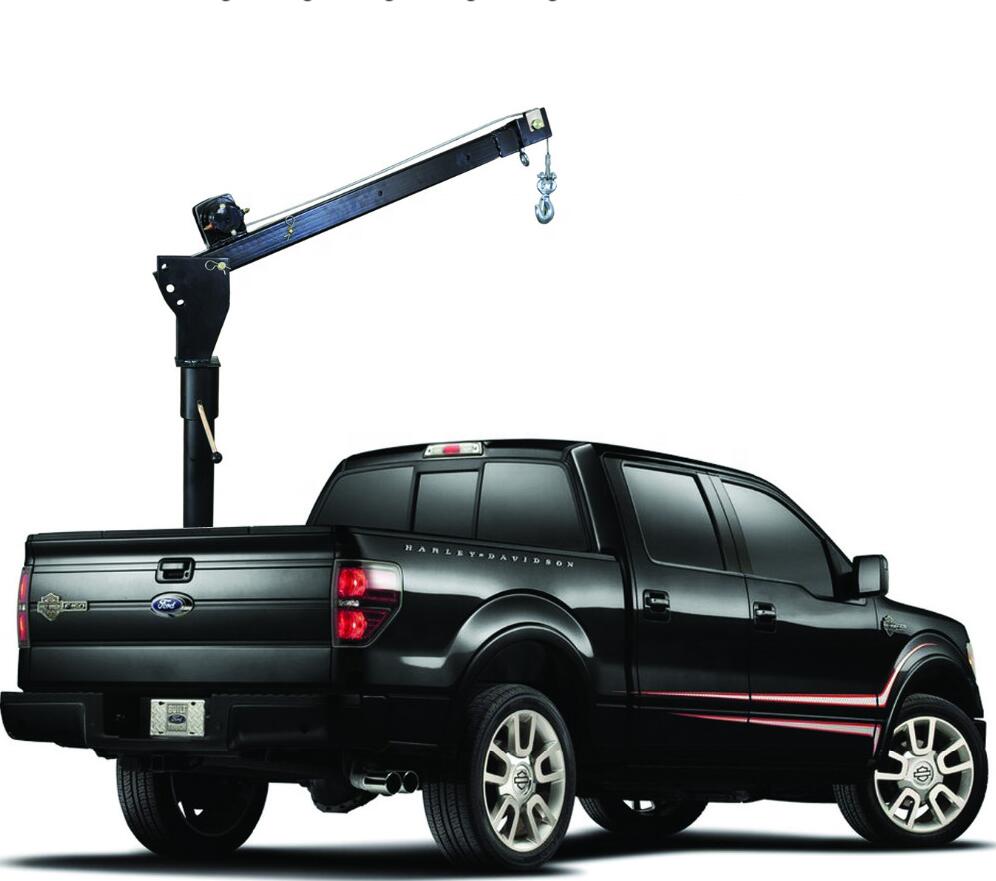

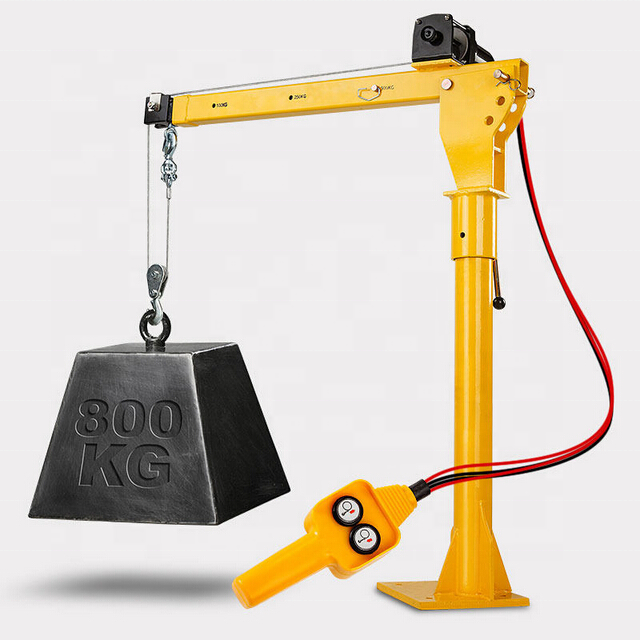

DC 12V mini truck crane is one of our professional products, with 12 volt DC as the power. It is widely used in pick -up
trucks, caravan cars, loading docks, platforms etc. With outstanding features such as structurally compact, small sized, light weighted, and minimal space required.

Electric

The 3000lbs winch can be connected to 12V/24V DC power.

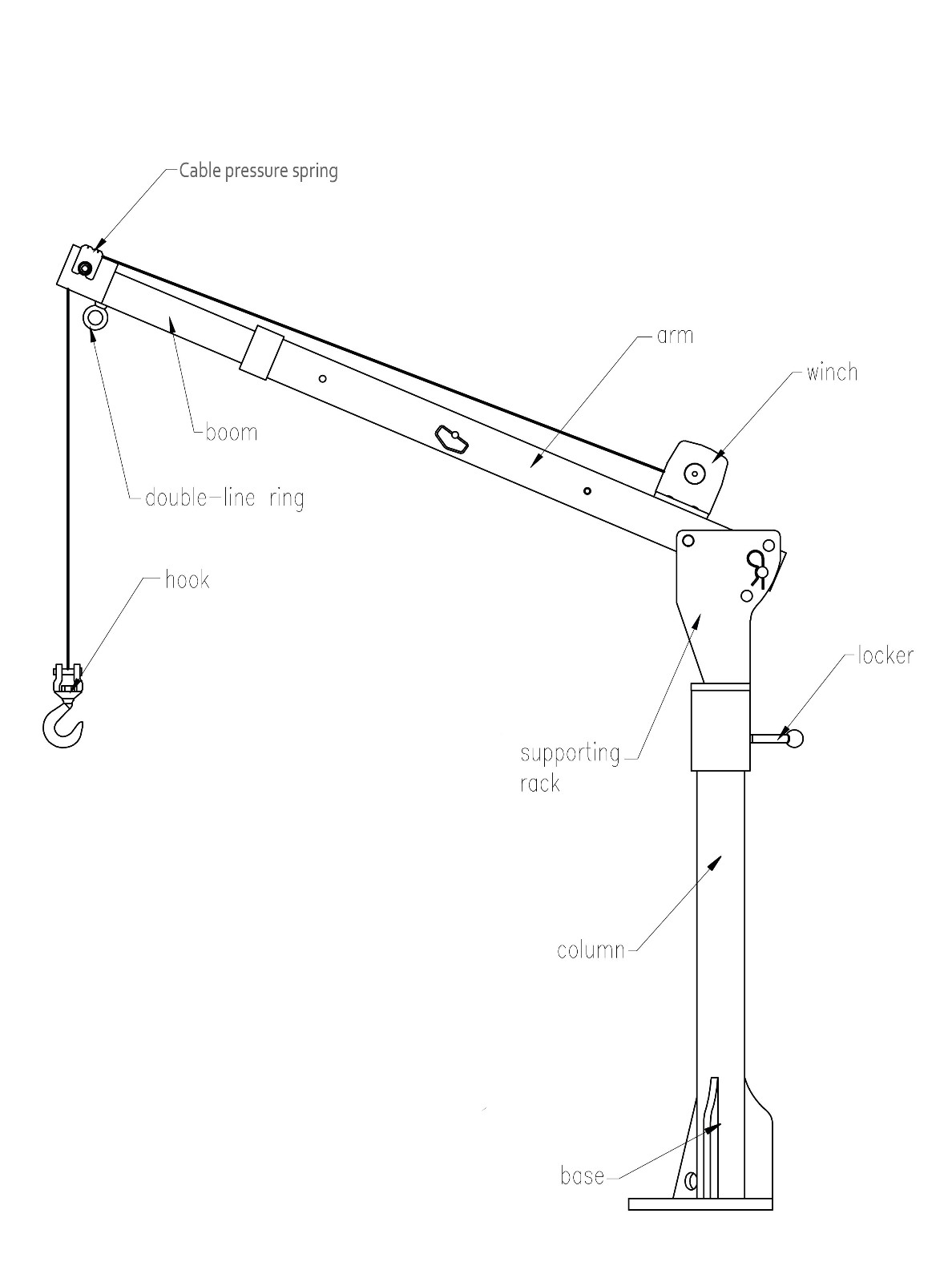

Telescopic

The beam can be telescopic at 1100mm,1350mm and 1600mm.

Swivel 360°

The beam can swivel as your working need

Angle adjustable

The angle of the beam can be adjustable with the knurling pin.

Product name	Mini truck crane	Power	12V DC 125amps
Line speed(no load)	3.6m/min,single line	Rotation with brake	360° manual
Max capacity	500kg	Min capacity	100kg
Lifting cable	Φ4.8mm×6.6m	Lifting height	1940mm
Reach	1490mm	Gross weight	60kg
Switch cable	4.2m	Mounting base	250mm×250mm×18mm
Packing size	140cm×39cm×35cm	Mounting bolt hole pattern	170mm×170mm
