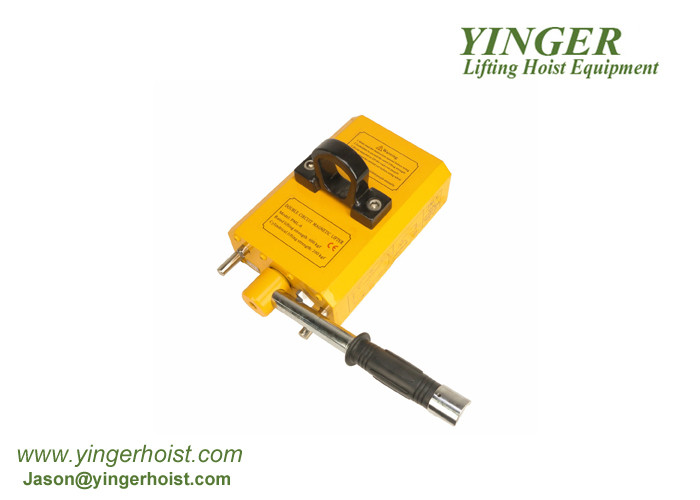

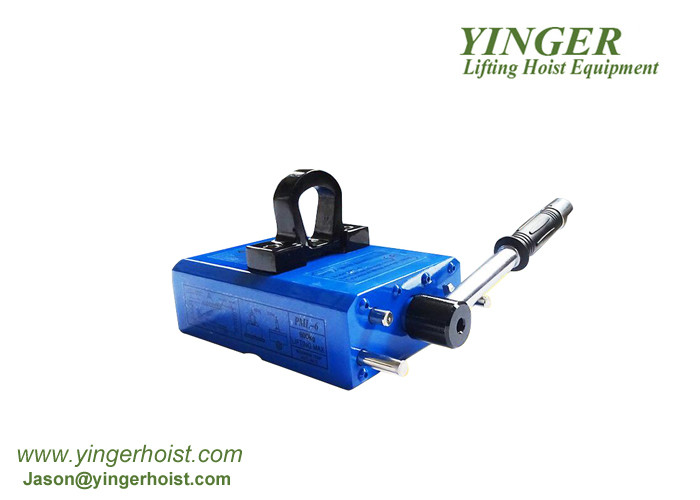

double magnetic circuit lifting magnets manual lifting magnets permanent magnetic lifter

Thin-plate double magnetic circuit permanent magnet lifter Permanent magnet lifter Manual permanent magnet lifter Special lifting equipment Factory Outlet


 Double magnetic circuit lifter is mainly used for connecting steel workpiece during lifting and handling operations.

They can hoist and move steel plates,blocks,cylindrical and other ferromagnetic material.It's easy to operate and

its structure is compact with low self-weight.Hence they are widely used as hoisting devices in factories,docks,

warehouses and transportation industry.By using them ,you can improve your  working efficiency greatly.

Constructions:

Double magnetic circuit lifters have strong magnetic path by NdFeb magnetic materials.On and off magnetic path is controlled by  turning the manual handle.

On and off the magnetic path is controlled by turning the manual handle.

Strong magnetism,low self-weight,little residual magnetism on released condition, showing of its precise design.




parameters of magnetic lifter

Model

Rated lifting strength

(kgf)

Cylindrical

lifting

strength

(kgf)

Max

pull-off

strength(kgf)


   L


 W


    H


    R

Operation

temperature

(℃)

N.W.(kg)

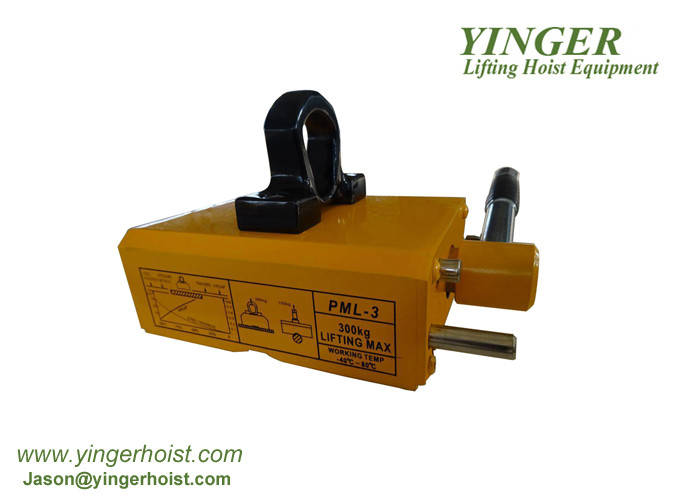

PML-3

300

100

900

163

133

60

180

<80

9.5

PML-6

600

200

1800

234

162

74

220

<80

21

PML-10

1000

300

3000

302

190

87

265

<80

37.5

PML-20

2000

600

6000

441

231

107

380

<80

77


Details

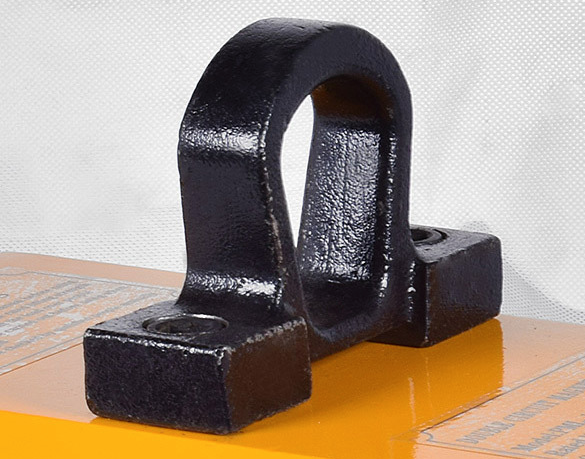

high strength alloy rigging ring

It is made of high strength alloy  and forged process,owning good wear resistance and capacity.



U shaped  groove

four U shaped grooves increase magnetism contact area.


The graph for steel thickness and loading capacity

It can be used to lift thin plate ferromagnetic material  provided the thickness is more than 5mm

High strength alloy lever covered by rubber

The rubber supplies good friction for handling and rotating the lever.

The damper strength for operating which is only 30%-40% compared with the single-magnetic ones.
