Manual Magnetic Lifter
Magnetic Lifters have strong magnetic path made by strong NdFeB magnetic material which supply permanent power. Our permanent magnetic lifters are made use of in a variety of industries. Our permanent magnetic lifters can hoist iron, steel blocks, cylinder and others and provide a quick and convenient method of loading, unloading, and moving. Our permanent magnetic lifters are the most ideal lifting equipment for factories, warehouses, docks and transportation.

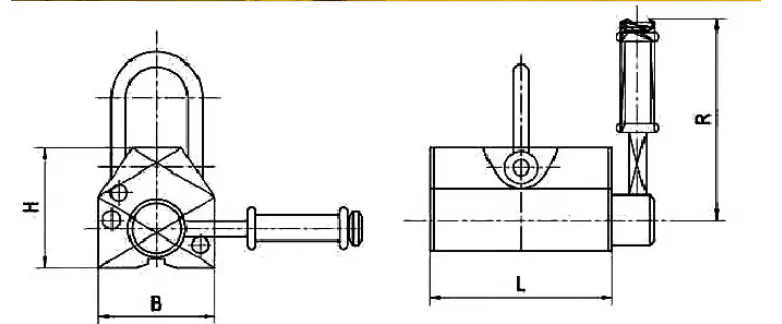

Type | Rated Load/kg | Max Breakaway | Size(mm) | Net Weight(kg) | |||
L | B | H | R | ||||
100 | 100 | 300 | 123 | 62 | 67 | 140 | 3 |
400 | 400 | 1200 | 195 | 95 | 92 | 160 | 9 |
600 | 600 | 1800 | 246 | 120 | 115 | 220 | 20 |
1000 | 1000 | 3000 | 298 | 153 | 135 | 250 | 36 |
2000 | 2000 | 5000 | 395 | 172 | 165 | 350 | 68 |
3000 | 3000 | 7500 | 480 | 175 | 165 | 350 | 80 |
4000 | 4000 | 10500 | 560 | 175 | 165 | 360 | 109 |
5000 | 5000 | 12500 | 570 | 230 | 215 | 680 | 192 |
6000 | 6000 | 15000 | 780 | 230 | 215 | 720 | 218 |
Features:
1. Permanent magnetic lifter is widely used as lifting tools in factory terminals and warehouse.
2. Safe and reliable, easy to operate, can be used single or combined with other machines to move long and big magnetic iron steels.
3. Using high-performance permanent magnet, ensure the power and high safety.
4. Maintain constant and reliable magnetism without electricity, residual magnetism approach naught.
5. The maximum pull-off force as 3.5 times as rated lifting force which contribute to improve the working conditions of
loading operation and labor productivity.
6. The lifting have high resistance to demagnetization, the lifting value will keep constant and stable.
