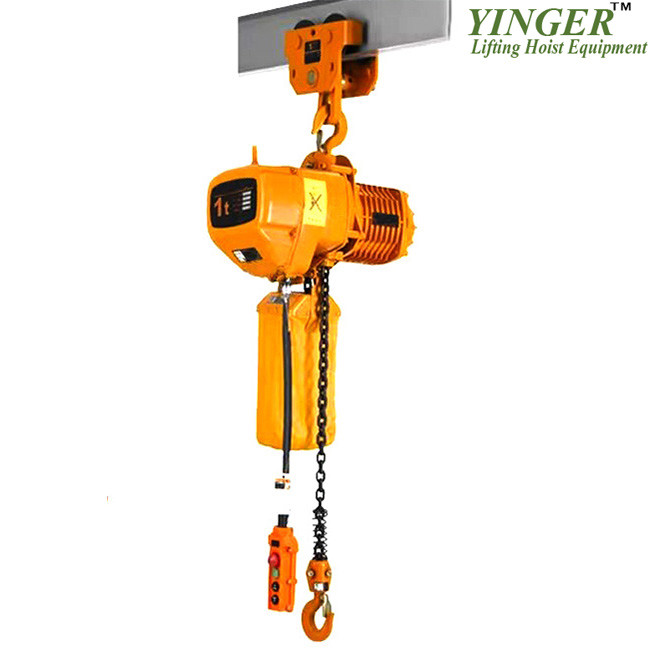

Ring chain electric hoist

The running electric chain hoist is a light and small lifting equipment. It is composed of motor, transmission mechanism and sprocket. The lifting capacity is 0.3-32 tons and the lifting height is 3-120 meters. Japanese electric chain hoist is widely used in workshops, warehouses, wind power generation, logistics, docks, construction and other occasions. This electric hoist can be used with single and double beam crane, jib crane and gantry frame. It can be used for lifting or loading and unloading goods, and can also be used for the installation, debugging and maintenance of precision mold. The operator can follow the control on the ground with buttons, or operate in the control room or use wired (wireless) remote control. This electric hoist not only can be used for fixed suspension, but also can be equipped with electric monorail trolley and hand push / hand pull monorail trolley for walking.

Product features:
1. Shell: the shell is light and strong, with high heat dissipation rate and sealing design, which is suitable for use in the environment with poor working conditions.
2. Reverse phase protection device: it is a special electrical device. When the power connection is wrong, the control circuit cannot work.
3. Limit switch: there is a limit switch device for the lifting of heavy objects to stop the motor automatically, so as to prevent the chain from exceeding and ensure safety.
4. Low voltage handle switch: handle low-voltage control device of 24 V / 36 V / 48 V, in case of switch leakage during operation, it can prevent accidents.
5. Braking device: disc DC electromagnetic field braking is adopted for braking, with large braking torque, stable, rapid and low noise.
6. Chain: Grade 80 super heat treatment alloy steel chain is adopted to make the chain more tough, more firm and wear-resistant, and ensure the safety in work.
7. Running device: the electric trolley is equipped with a guide device to make the hoist run more smoothly on the I-beam.
8. Aviation type socket: the connection between the hoist and the electric appliance of the trolley is all aviation type plug, which is more safe and beautiful.

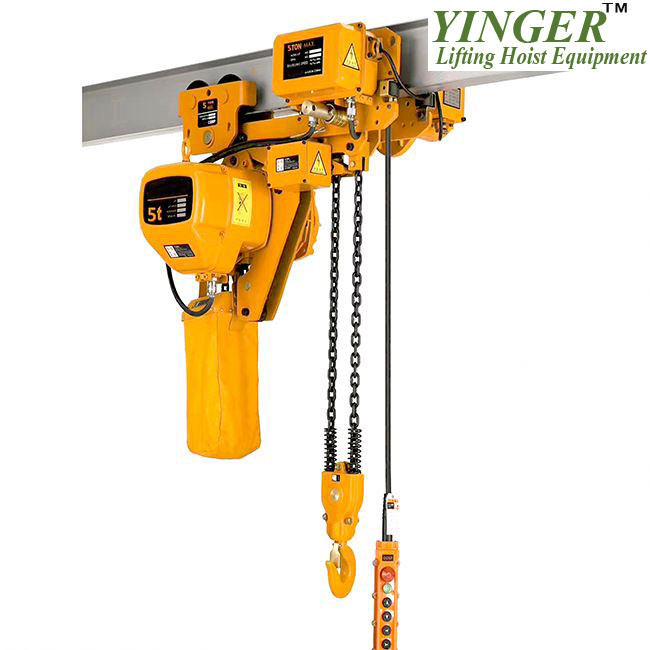

9. Low headroom: the low headroom electric hoist has a unique structure in shortening the distance between the body and the beam track, which is suitable for use in lower buildings, especially in temporary plants or places where the effective lifting space needs to be expanded.
