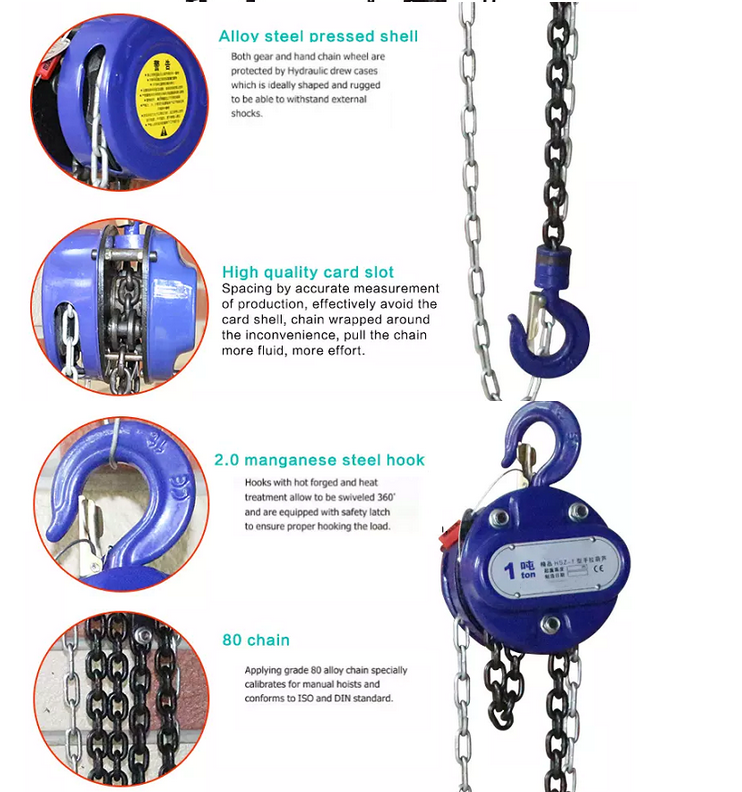

Feature:
1.Gear case and hand wheel cover resistant to external shocks.
2.Double enclosure to keep out rain water and dust.
3.Sure and reliable braking functions(mechanical break).
4.Double pawl spring mechanism to further increase sureness.
5.Hook for easy work.
6.Gear with natures of high preciseness and tenacity.
7.Load chain guide mechanism,finely fabricated for wrought iron.
Ultra strong load chain.
Technical Data:
Model | HSZ-C 0.5 | HSZ-C 1 | HSZ-C 1.5 | HSZ-C 2 | HSZ-C 3 | HSZ-C 5 | HSZ-C 10 | HSZ-C 20 |
Capacity(ton) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 |
Lifting Height(m) | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 |
Test load(ton) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 | 25 |
Mini diatance betwern hook(mm) | 225 | 306 | 368 | 444 | 486 | 616 | 700 | 1000 |
Lifitng chain No. | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 |
Round steel diameter of chain | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 |
Main dimension(mm) | 125 | 147 | 183 | 147 | 183 | 215 | 360.5 | 585 |
111 | 126 | 141 | 126 | 141 | 163 | 163 | 191 |
Quick Details
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction works , Energy & Mining, hand chain block
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
Pillar
Usage:
Construction Hoist
Power Source:
Hand Chain
Sling Type:
Chain
Lift Speed:
Depends
Certification:
ISO9001:2008 / CE / SGS
Warranty:
1 Year
After-sales Service Provided:
Online support
Key Words:
VT chain block 1.5t
Load chain number:
1-2
Shell:
alloy steel
Capacity:
1-30ton
Product name:
High Quality CE Certification Hand Tool VT Chain Block Set 1.5t
Chain:
Grade 80 chain
Quality standard:
EN818-7
Application:
Factories, mines, electricity, docks, warehouses
Hook Material:
2.0 Manganese Steel
Feature:
1.Gear case and hand wheel cover resistant to external shocks.
2.Double enclosure to keep out rain water and dust.
3.Sure and reliable braking functions(mechanical break).
4.Double pawl spring mechanism to further increase sureness.
5.Hook for easy work.
6.Gear with natures of high preciseness and tenacity.
7.Load chain guide mechanism,finely fabricated for wrought iron.
Ultra strong load chain.
