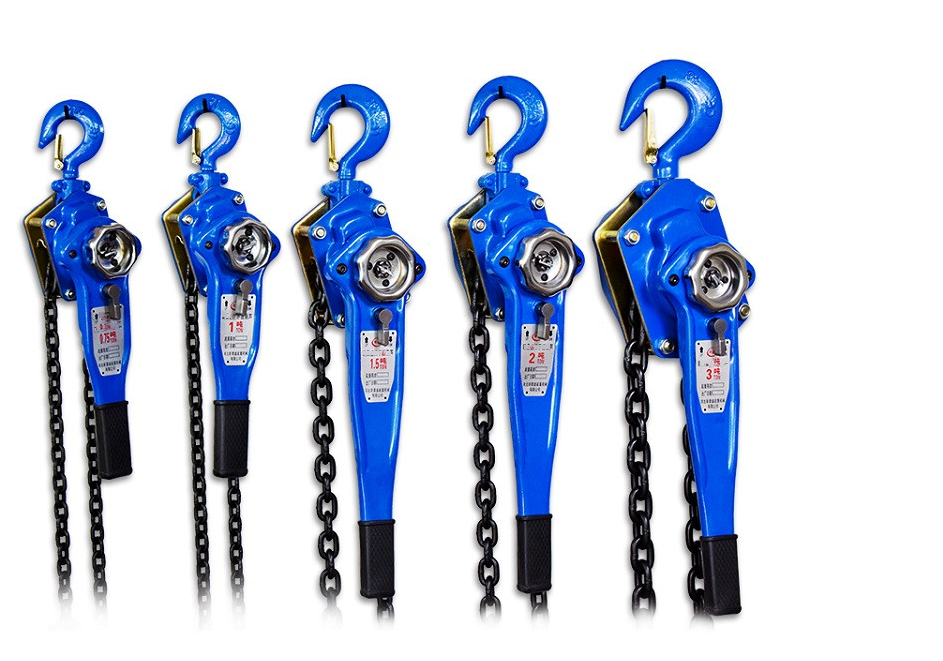

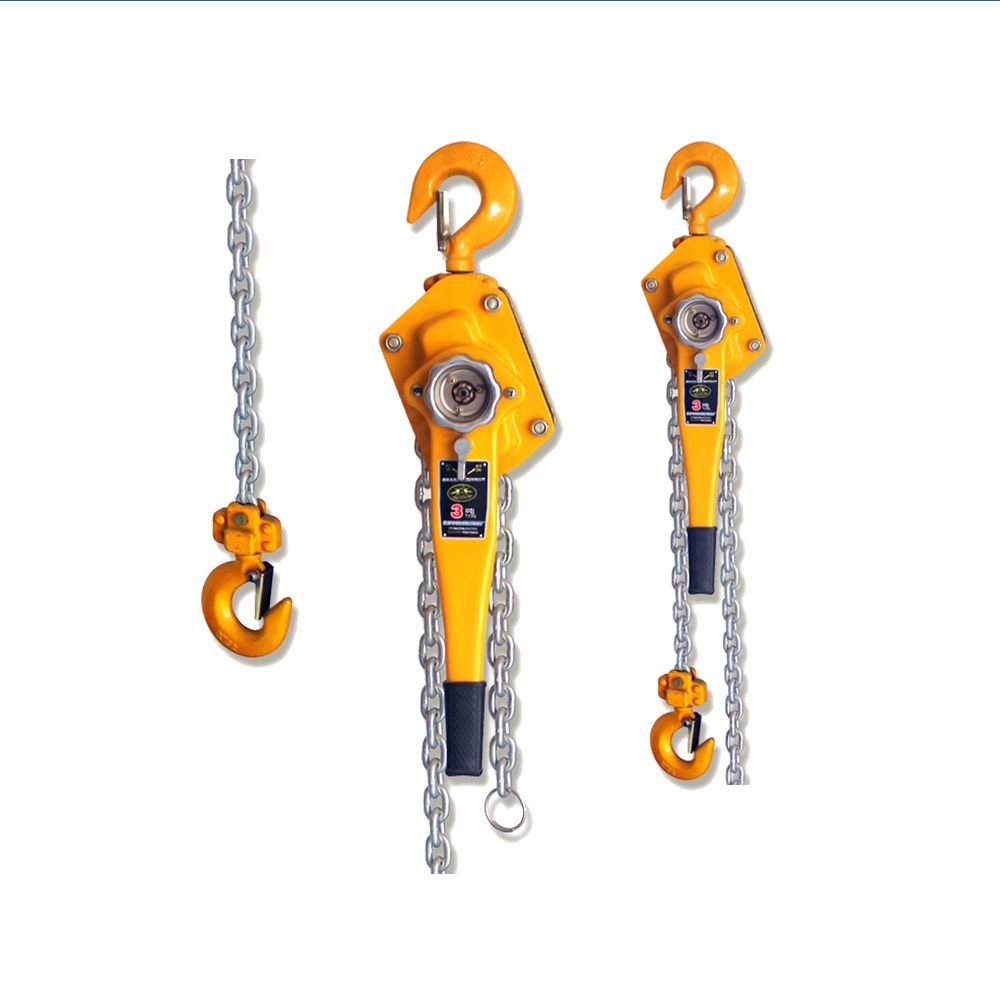

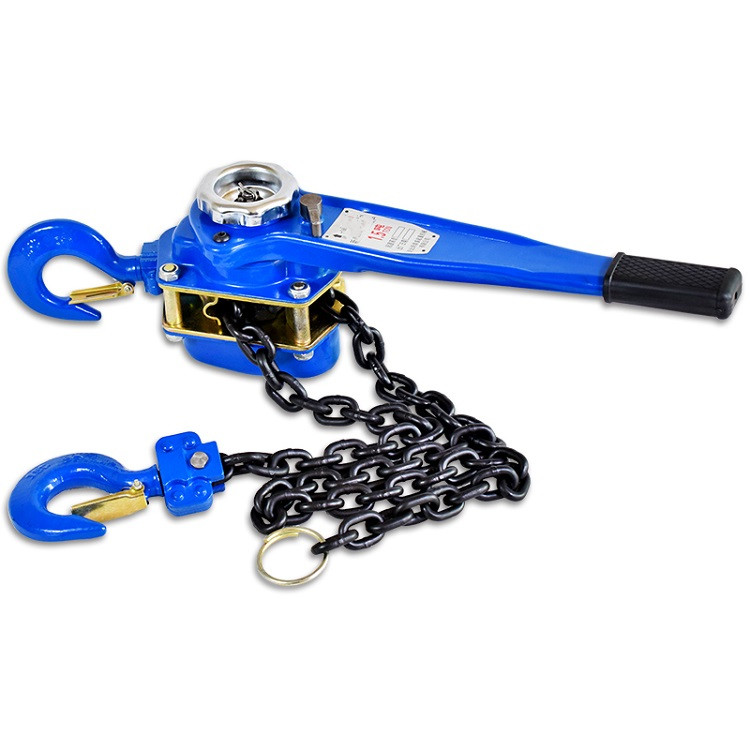

CE marked 1.5 ton manual 250kg lever chain hoist block

CE marked 1.5 ton manual 250kg lever chain hoist block

customized:
accept
Color:
Customized
Type:
Lifting equipment
characteristic:
It is easy to use and fast to improve
OEM:
available
Capacity:
0.75t-9t
Standard lifting height:
1.5m-3m
Product Name:
CE mark 1.5T manual 250kg lever chain hoist

Model	VA0.25	VA0.5	VA0.75	VA1	VA1.5	VA2	VA3	VA6
Capacity t	0.25	0.5	0.75	1	1.5	2	3	6
Standard Lift m	1	1.5	1.5	1.5	1.5	1.5	1.5	1.5
Running test load t	0.375	0.75	1.13	1.5	2.25	3	4.5	9
Min distance between hooks			325	335	380	380	480	620
Effort required to lift max load N			140	140	220	220	320	3404
Diameter of load chain mm	4	5	6	6	8	8	10	10
Net weight kg			7	7.5	11	12	21	31
Extra weight per meter of extra lift cm			0.92	0.92	1.6	1.6	2.4	4.8

Quick details
Applicable industries:
Building materials shop, machinery repair shop, manufacturing plant, household, construction engineering, energy and mining, lever block
Conditions:
newly build
country of origin:
hebei china
Brand name:
pillar
Usage:
Construction elevator
Power Supply:
lever
Sling type:
chain
Lifting speed:
manual
authentication:
CE ISO standard
Guarantee:
1 year
After sales service provided:
Online support
key word:
Lever pulley
customized:
accept
Color:
Customized
Type:
Lifting equipment
characteristic:
It is easy to use and fast to improve
OEM:
available
Capacity:
0.75t-9t
Standard lifting height:
1.5m-3m
Product Name:
CE mark 1.5T manual 250kg lever chain hoist
characteristic:

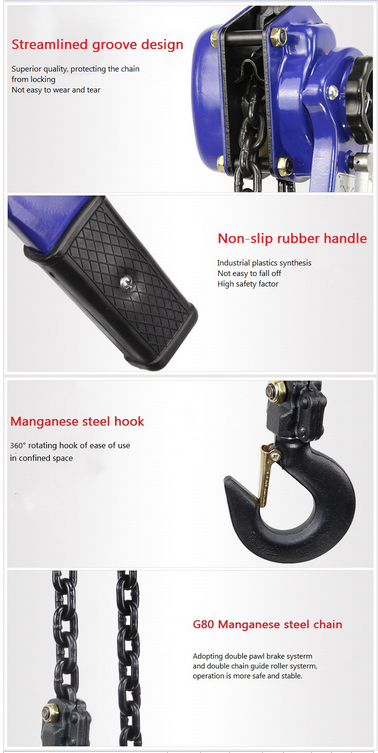

1) Capacity from 0.5T to 6T, minimum clearance required, very flexible operation
2) Automatic double claw brake system
3) The chain guide provides smooth chain operation
4) Roller bearings to avoid wear support the load pulley
5) The g80 chain is made of special alloy steel
6) To ensure excellent quality and safety
7) The static test of lever hoist is 4 times capacity, and the operation test is 1.5 times capacity
8) The lever block has high efficiency, fast lifting and light hand pulling.
9) Surface treatment: automobile coating.
