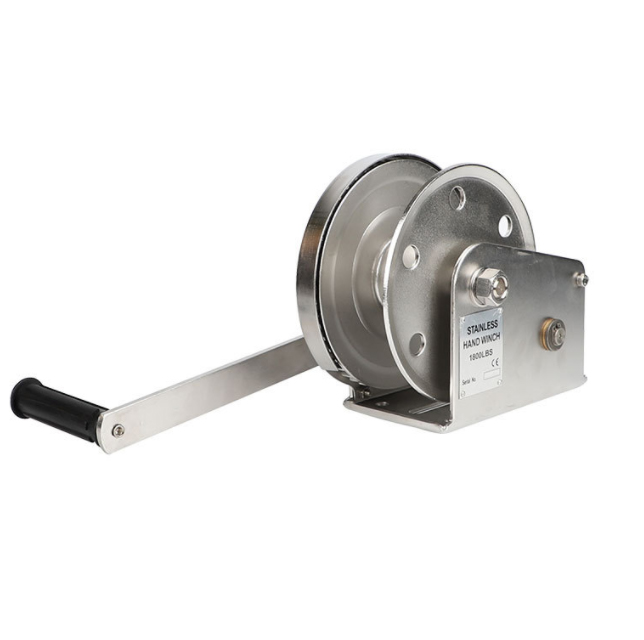

Stainless Steel Hand Winch Manual Ratchet Brake

Stainless Steel Hand Winch Manual Ratchet Brake

Hand winches or called manual winches are operated by turning the ratchet crank or lever to lift and pull a load.If you wind the cable onto the cable spool,the winch will pull in a load.

If you wind out,the device will let the load move away.

A hand winch is a tool that makes it easier to pull or lift large or heavy items.Such as loading boats onto trailers,multipurpose hauling or lifting light loads.

Model	KD-S1200	KD-S1800	KD-S2600
rated pulling capacity	1200lbs/540kg	1800lbs/810kg	2600lbs/1200kg
rated lifting capacity	600lbs/270kg	900lbs/405kg	1300lbs/600kg
gear ratio	4.2:1	5:1	10:1
rope drum capacity	4.0mm*30m	5.0mm*25m	6.0mm*25m
package size	161622cm 6pcs/CTN	352023cm 4pcs/CTN	352424cm 4pcs/CTN
net weight per unit	3.7kg	7.7kg	10.1kg

Model	KD-S1200	KD-S1800	KD-S2600
A	156mm	203mm	216mm
B	184mm	256mm	293mm
C	88mm	107mm	127mm
D	210mm	319mm	319mm
E	48mm	60mm	75mm
F	134mm	180mm	180mm
G	51mm	60mm	63mm
H	109mm	109mm	109mm
J	42mm	55mm	45mm
K	50mm	80mm	86mm
L	99mm	135mm	175mm
M	133mm	195mm	240mm
N	272mm	283mm	305mm
R	27mm	27mm	27mm
