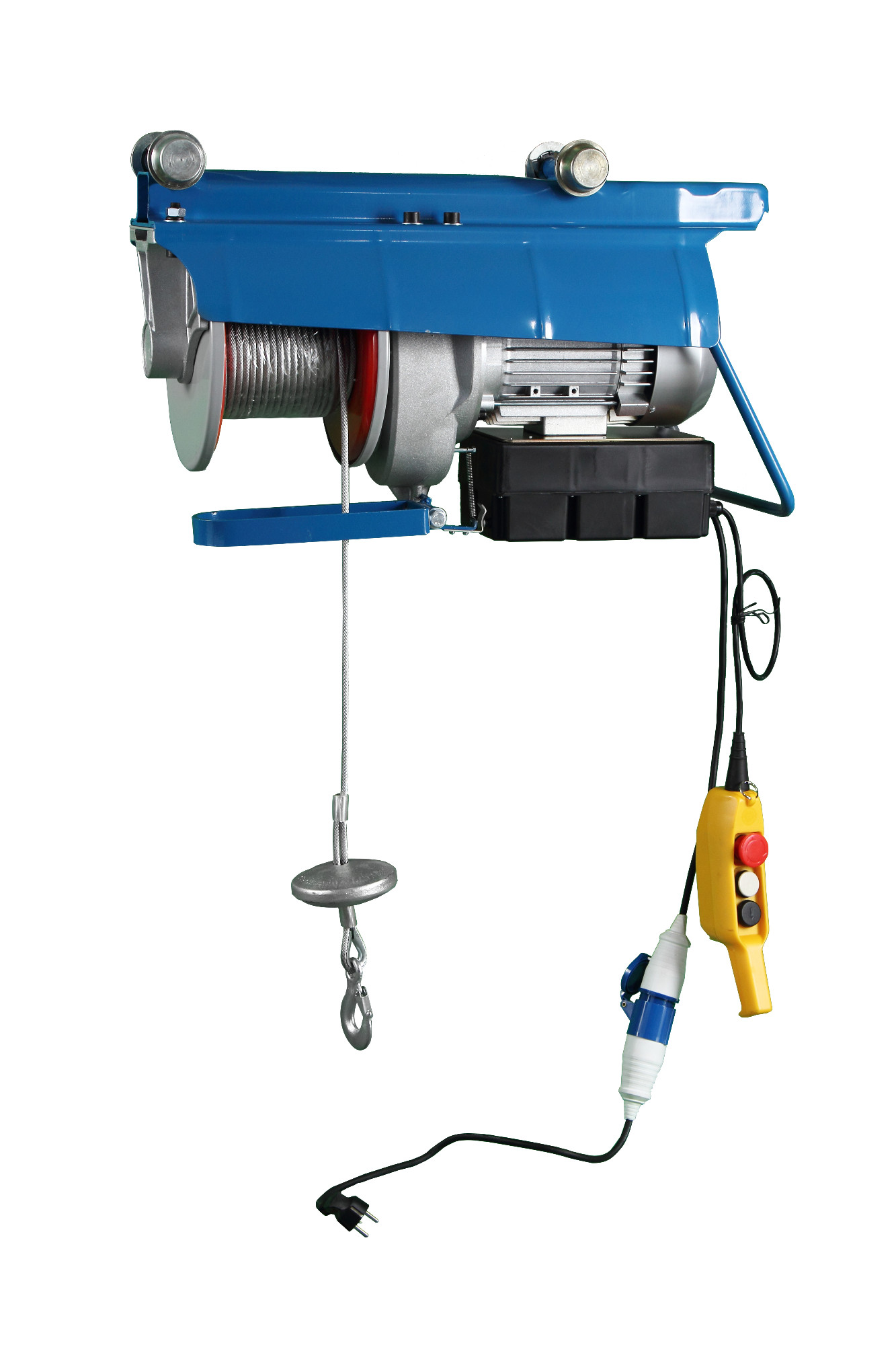

Push fast electric chain hoist wire rope push 250kg electric hoist
It can be used for mine lifting ,motor with insulation B,protection class is IP54,With thermal protection Device.Working rate is S3-30%,20min.
Push fast electric chain hoist wire rope push 250kg electric hoist
It can be used for mine lifting ,motor with insulation B,protection class is IP54,With thermal protection Device.Working rate is S3-30%,20min.

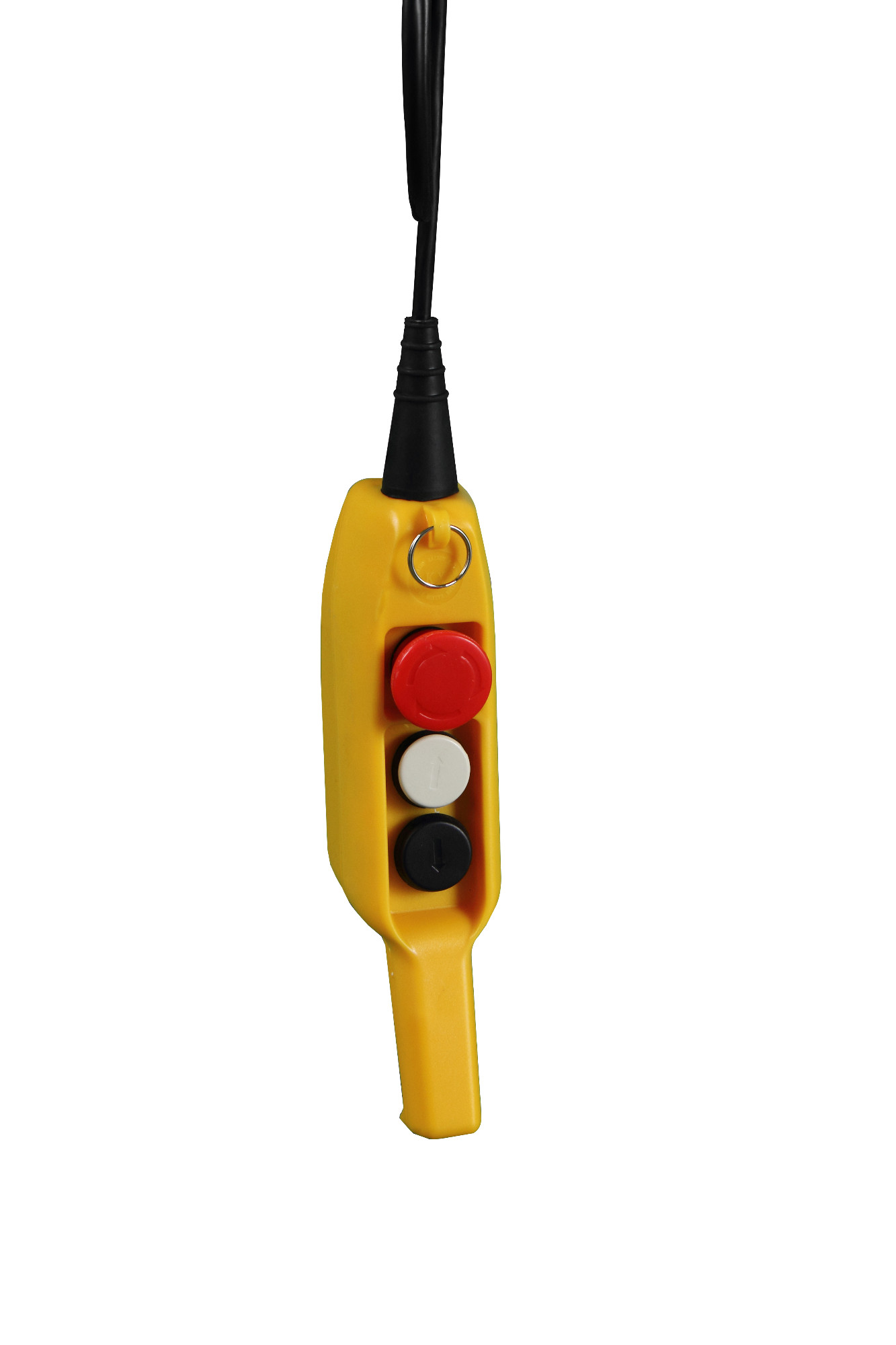

1.Handle control voltage AC 24V
2.With IP65 protection degree
3.Working rate is S3-30%,20min
4.It can be used for mine lifting ,insulation degree is B,protection
5.degree is ip54,With thermal prevention Device,Working rate is 30%,20min
6.Push electric hoist ,can push the hoist quickly !
Model | HSG-B300 | HSG-B400 | HSG-B500 | HSG-B1000 |
Rated Capacity (kg) | 300 | 400 | 500 | 1000 |
Lifting Height (m) | 24 | 24 | 24 | 20 |
Lifting Speed(m/min) | 21 | 21 | 16 | |
Rated Volt(V) | Single Phase AC 110/220/230/240V 50/60Hz | Single Phase AC 110/220/230/240V 50/60Hz | Single Phase AC 110/220/230/240V 50/60Hz | Single Phase AC 110/220/230/240V 50/60Hz |
Cable Diameter(mm) | φ6 | φ6 | φ7 | φ7 |
Qty-/CTN(pcs) | 1 | 1 | 1 | 1 |
Packing Size(mm) | 800*340*540 | 800*340*540 | 800*340*540 | 800*340*540 |
G.w/N.w(kg) | 57/55 | 57/55 | 60/58 |
Model | HSG-B300E1 | HSG-B400E1 | HSG-B500E1 | HSG-B1000E1 |
Rated Capacity (kg) | 300 | 400 | 500 | 1000 |
Lifting Height (m) | 24 | 24 | 24 | 20 |
Lifting Speed(m/min) | 28 | 21 | 21 | 11 |
Rated Volt(V) | Three Phase AC 230/380/440V 50/60Hz | Three Phase AC 230/380/440V 50/60Hz | Three Phase AC 230/380/440V 50/60Hz | Three Phase AC 230/380/440V 50/60Hz |
Cable Diameter(mm) | φ6 | φ6 | φ7 | φ7 |
Qty-/CTN(pcs) | 1 | 1 | 1 | 1 |
Packing Size(mm) | 800*340*540 | 800*340*540 | 800*340*540 | 800*340*540 |
G.w/N.w(kg) | 57/55 | 57/55 | 60/58 |
