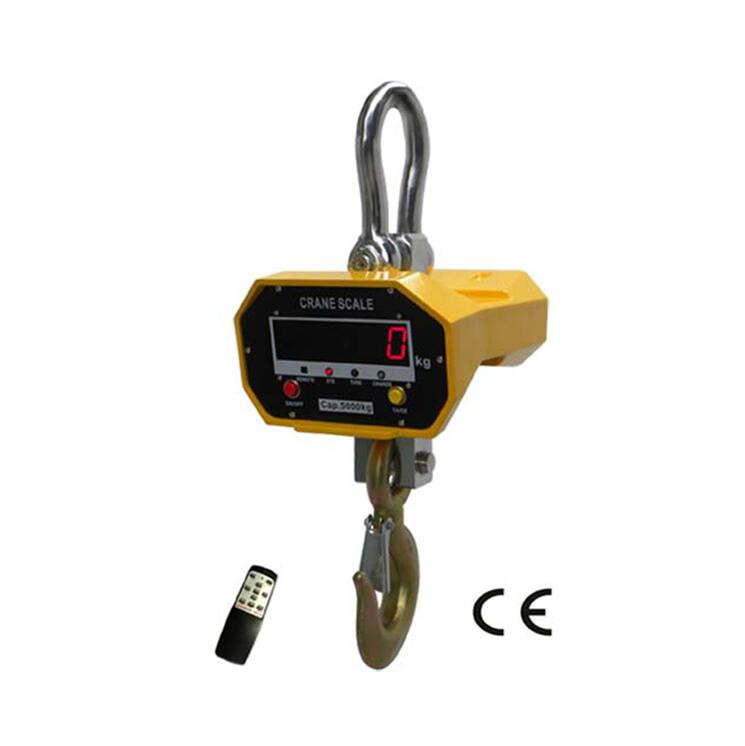

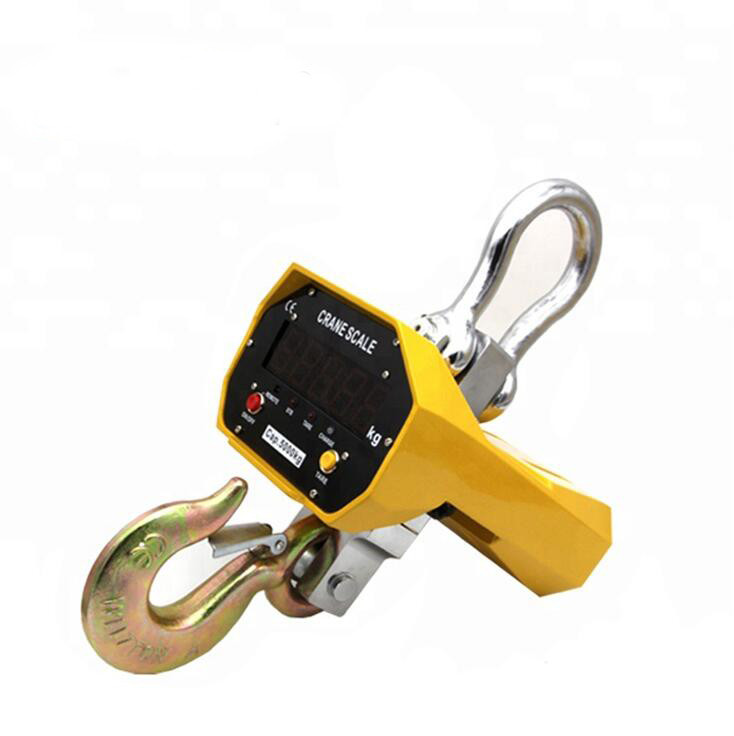

Industrial Equipment Electric Digital Crane Scale

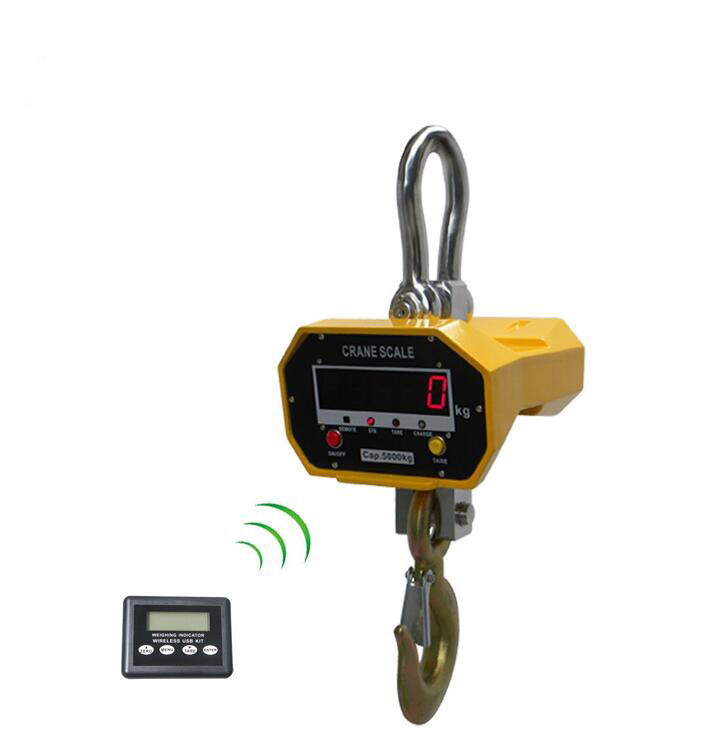

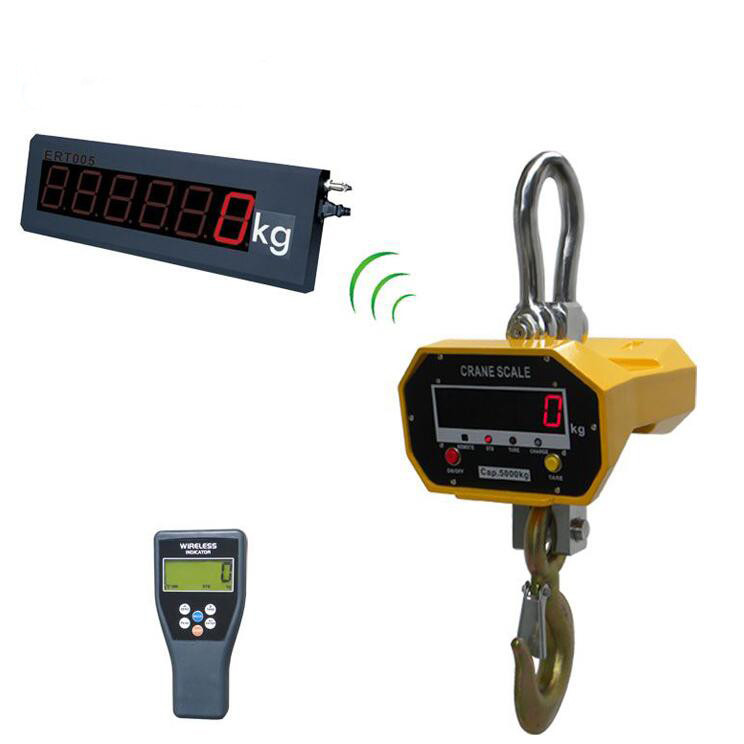

Electronic crane scale is a heavy duty model with a sturdy housing to withstand the knocks and bumps expected while loading heavier items. Equipped with a standard wireless remote control function which makes operation more efficient and safe.
These digital crane scales are fitted with an internal rechargeable battery and are supplied with a spare battery pack and charger to ensure continued crane scale operation over extended periods of time.
Industrial Equipment Electric Digital Crane Scale
Technical parameters:
Model | Mini. Weight(kg) | Division (kg) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | H(mm) | G.W. (kg) |
OCS-2 | 2000 | 1 | 95 | 260 | 33 | 195 | 135 | 430 | 10.5 |
OCS-3 | 3000 | 1 | 95 | 260 | 40 | 195 | 135 | 455 | 11.5 |
OCS-5 | 5000 | 2 | 120 | 325 | 50 | 240 | 165 | 535 | 17.5 |
OCS-10 | 10000 | 5 | 124 | 325 | 60 | 240 | 165 | 660 | 29.5 |
OCS-15 | 15000 | 5 | 225 | 345 | 70 | 240 | 165 | 855 | 49 |
OCS-20 | 20000 | 10 | 225 | 345 | 85 | 240 | 165 | 920 | 56 |
Features : |
Class of accuracy: GB/T11883-2002electronic crane scalesⅢ.
Tare range: maximum capacity 100%
Zero range: maximum capacity ±20%
Stable time: 10 sec
Overload alarm: maximum capacity 100%+9 grdn
Max safety load: maximum capacity 150%
Battery specification: 6V/4Ah lead-acid battery
Charge: AC220V input, DC1.2V500mA output
Operation temperature: -10°C~+40°C.
Display screen: ultra-high brightness digital tube 0.8inch /1.2inch LED display.
Remote control interface: 4 key remote control.
We will continue to develop and extend our products range with high quality,safety standard and long life usage.
