1.1

Manufacturer

1.2

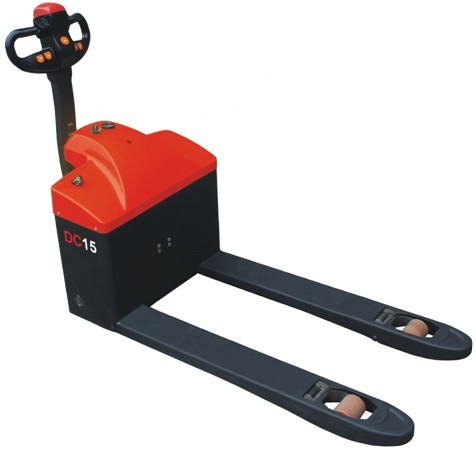

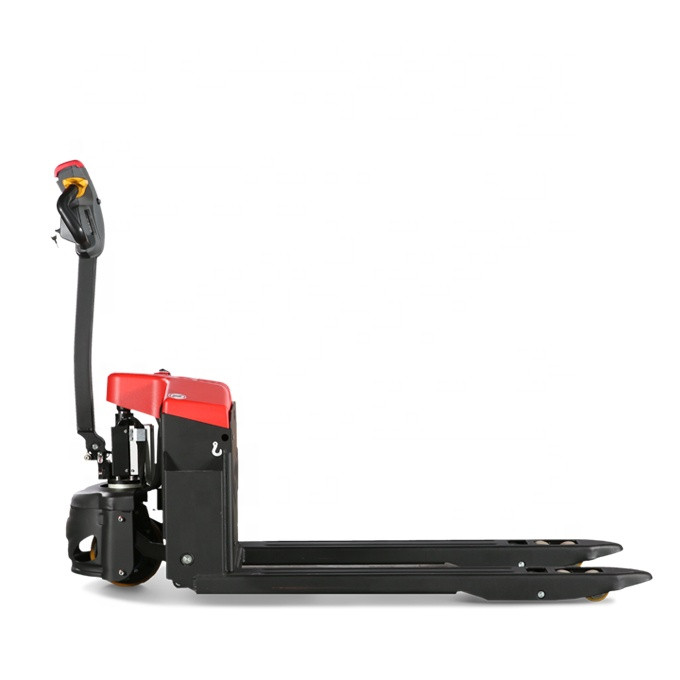

Model designation

EPT-15

1.3

Drive unit

Electrics

1.4

Operator type

pedestrian

1.5

rated capacity

Q

kg

1500

1.6

Load center distance

c

mm

600

1.8

Load distance

x

mm

889/946

1.9

Wheelbase

y

mm

1261/1205

Weight

2.1

Service weight (include battery)

kg

195

2.2

Axle loading, laden driving side/loading side

kg

565/1130

2.3

Axle loading, unladen driving side/loading side

kg

155/40

Types,Chassis

3.1

Tyre type driving wheels/loading wheels

PU/ PU

3.2

Tyre size, driving wheels(diameter×width)

mm

210x70

3.3

Tyre size, loading wheels(diameter×width)

mm

2x 78x60(78x88)

3.4

Tyre size, caster wheels(diameter×width)

mm

3.5

Wheels, number driving,caster/loading (x=drive wheels)

mm

1x /4(1x /2)

3.6

Track width, front,driving side

b10

mm

3.7

Track width,rear,loading side

b11

mm

410(535)

Dimensions

4.4

Lift height

h3

mm

115

4.9

Height drawbar in driving position min./max.

h14

mm

790/1225

4.15

Lowered height

h13

mm

80

4.19

Overall length

l1

mm

1638

4.2

Length to face of forks

l2

mm

488

4.21

Overall width

b1/ b2

mm

568(685)

4.22

Fork dimensions

s/ e/ l

mm

50/150/1150

4.25

Distance between fork-arms

b5

mm

560(685)

4.32

Ground clearance, center of wheelbase

m2

mm

30

4.34.1

Aisle width for pallets 1000 × 1200 crossways

Ast

mm

1739

4.34.2

Aisle width for pallets 800 × 1200 lengthways

Ast

mm

1939

4.35

Turning radius

Wa

mm

1485

Performance data

5.1

Travel speed, laden/ unladen

km/ h

km/h

4/4.5

5.2

Lifting speed, laden/ unladen

m/ s

0.029/0.038

5.3

Lowering speed, laden/ unladen

m/ s

0.046/0.033

5.8

Max. gradeability, laden/unladen

2/6

5.1

Service brake type

Electromagnetic

Electric-engine

6.1

Drive motor rating S2 60 min

kW

0.65

6.2

Lift motor rating at S3 15%

kW

0.84

6.3

The maximum allowed size battery

mm

6.4

Battery voltage/nominal capacity K20

24/65

6.5

Battery weight

kg

22.5x2

Addition data

8.1

Type of drive control

DC

10.5

Steering type

Mechanical

10.7

Sound pressure level at the driver’s ear

74
