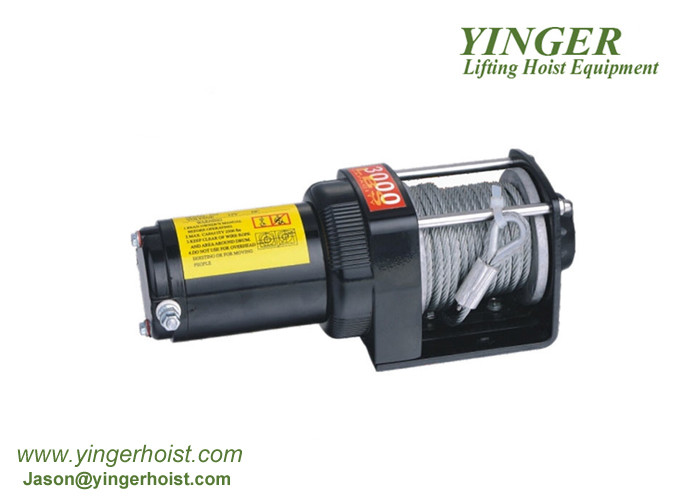

12v 24v 2000lbs Wire Rope Electric Winch Offroad Winch 4*4 Winch Atv Utv Winch Hoist

Electric Winch(DC V12) is the most common winch, driven by vehicle's own power system.

It works in such a way that converting automobile engines power into electricity power to drive the motors and drag noose.

It enlarges the output power by the inside planetary reducer to achieve deceleration & torsion enhancement and pull cargo.

Rated Line Pull		3000LB(1360kg) single-line
Motor		3.0hp/2.2kw 12V, Permanent Magnet Motor
Gear Train		1-stage planetary
Gear Reduction Ratio		153:1
Clutch		pull and push
Cable		φ3/16”×42.6” (φ4.76mm×13m)
Drum Size		φ1.3”×2.83”(φ32mm×72mm)
Overall Dimensions		(L×W×H)12.8”×4.1”×4.1”(325×105×105mm)
Gross Weight		21lbs(9.5kg)
Duty Cycle		Intermittently
Fairlead		4-way roller fairlead
Package		1pc/box 410×320×150mm
Mounting Bolt Pattern		3.15”(80mm )

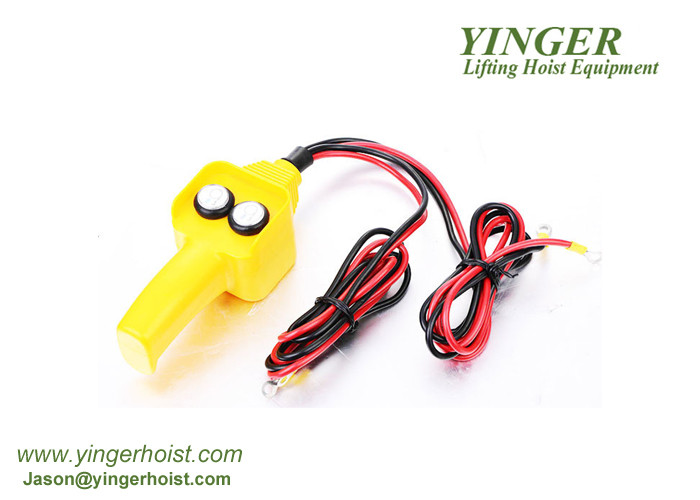

Remote Control		included
Note		solenoid can be chosen, Usd1.5 more for 120A
