Pneumatic balancer spring balancer
Air balancers provide ergonomic lift assist that interacts with the operator, making heavy objects easy to move. Precise, stain-free positioning leaves both of the operators’ hands free to raise, lower, or shift loads with virtually no resistance. This freedom of operation and easy control makes tasks like lifting and moving heavy loads in manufacturing, warehousing and other operations safer, easier and faster.
Air
balancers provide ergonomic lift assist that interacts with the
operator, making heavy objects easy to move. Precise, stain-free
positioning leaves both of the operators’ hands free to raise, lower, or
shift loads with virtually no resistance. This freedom of operation and
easy control makes tasks like lifting and moving heavy loads in
manufacturing, warehousing and other operations safer, easier and
faster.
PARAMETERS
Items | Unit | Specifications | |||||||
Model | JMB-60 | JMB-100 | JMB-160 | JMB-220 | JMB-320 | JMB-440 | |||
Capacity | kg | 60 | 100 | 160 | 220 | 320 | 440 | ||
Lift height | m | 1.4 | 1.8 | 2.3 | 1.9 | 1.1 | 0.9 | ||
Number of chain falls | 1 | 1 | 1 | 1 | 2 | 2 | |||
Working Medium | Compressed air | ||||||||
Working Pressure | mpa | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | ||
Air Consumption | m³/min | 0.27 | 0.33 | 0.35 | 0.36 | 0.35 | 0.36 | ||
Hose Fitting Thread | in | Rc3/8 | Rc3/8 | Rc3/8 | Rc3/8 | Rc3/8 | Rc3/8 | ||
Hose Dia. | mm | 10/12 | 10/12 | 10/12 | 10/12 | 10/12 | 10/12 | ||
Weight | kg | 25 | 37 | 56 | 58 | 60 | 62 | ||
Speed Range | Rated Load Speed | m/min | 58 | 30 | 20 | 17 | 10 | 8.5 | |
NO Load Speed | m/min | 22 | 24 | 26 | 26 | 27 | 28 |
TECHNICAL FEATURE
♦ Rope roll
liable, durable, little maintenance
♦ Axial bearing
Double dustproof ball bearing is applied.
♦ Cylinder and piston
imported lubricating grease is applied to improve the movement of piston
♦ Air regulator
to realize the balance of the load through regulating the inlet and outlet air.

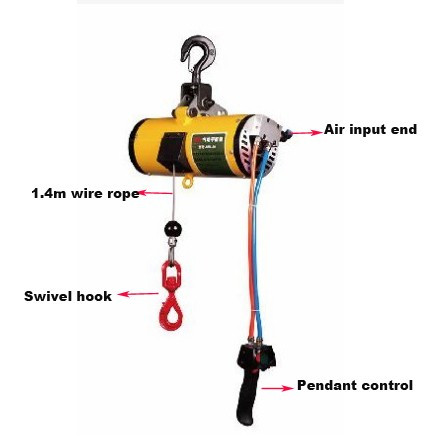

♦ Control handle
to control the lifting and lowering
♦ Protection against cutting off the air
When
the air supply is shut off, the centrifugal brake will block the
motivation transmission and lock the brake, then the load will be
stopped falling.
♦ Brake device
The
centrifugal brake can avoid the rope and hook moving upward or downward
suddenly and swiftly after sudden release of the load.
♦ Ball bearing screw
the piston pushed the ball bearing screw as well as rope roll rotate in the form of linear movement, to lift the load.
