KBK 2tons Flexible Beam EOT Crane Lifting Equipment

KBK 2tons Flexible Beam EOT Crane Lifting Equipment :
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying.
2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation.
3. If the size are suitable for container ship, usually by container.

KBK 2tons Flexible Beam EOT Crane Lifting Equipment :

1-3.2ton Light Duty Flexible Combined Overhead Crane Suspended Kbk Bridge Crane  Features:

1.Decrease industrial costing;

2.Design the whole structure based on original industry space and requirements;

3.Increase or decrease devices based on production demands, easy disassembly and relocation,not affect other equipments working;

4.Light and small structure, easy operation and accurate positioning;

5.Low consumption&energy and environmental protection;

6.Low noise: simple structure, low Failure rate;

7.High Comprehensive benefits.

  1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying.

 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation.
 3. If the size are suitable for container ship, usually by container.

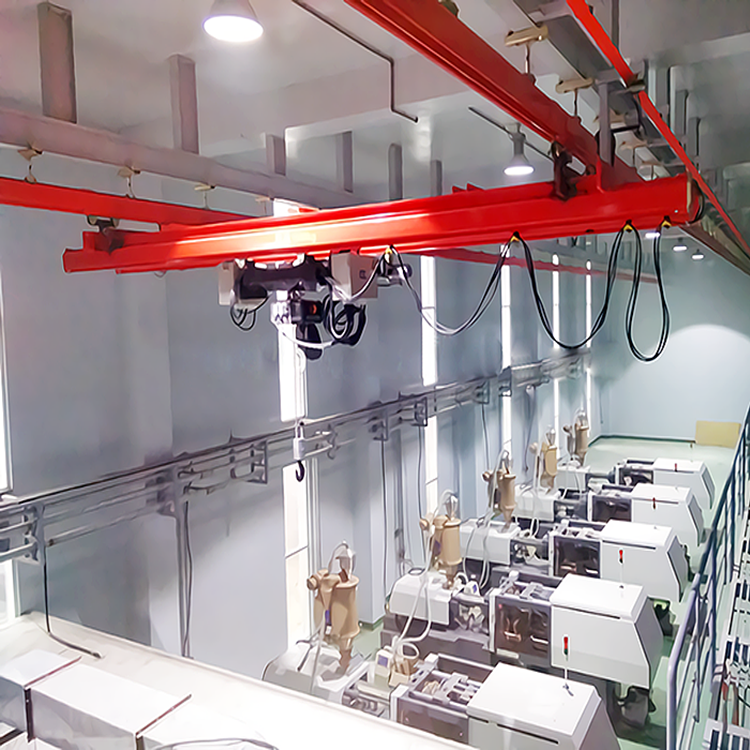

1-3.2ton Light Duty Flexible Combined Overhead Crane Suspended Kbk Bridge Crane

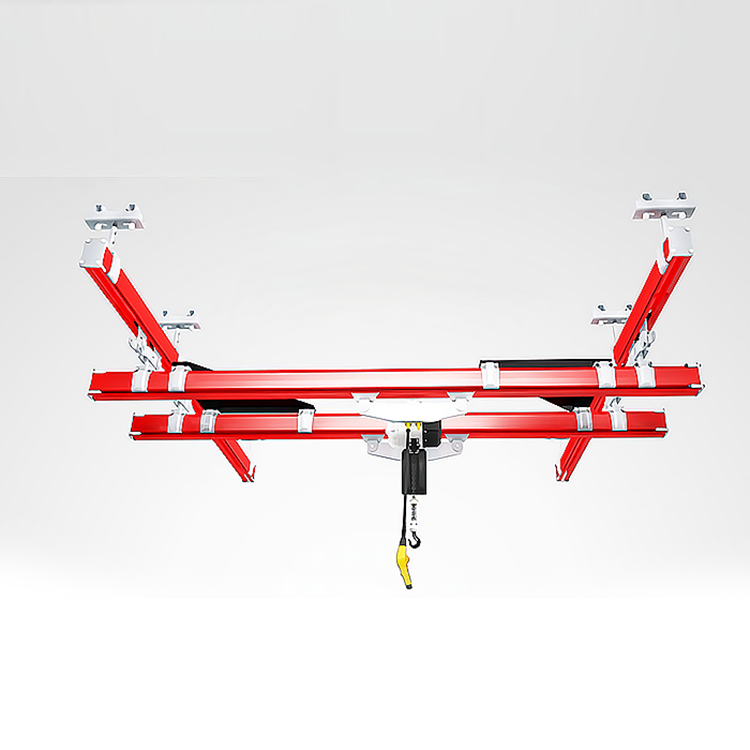

1-3.2ton Light Duty Flexible Combined Overhead Crane Suspended Kbk Bridge Crane

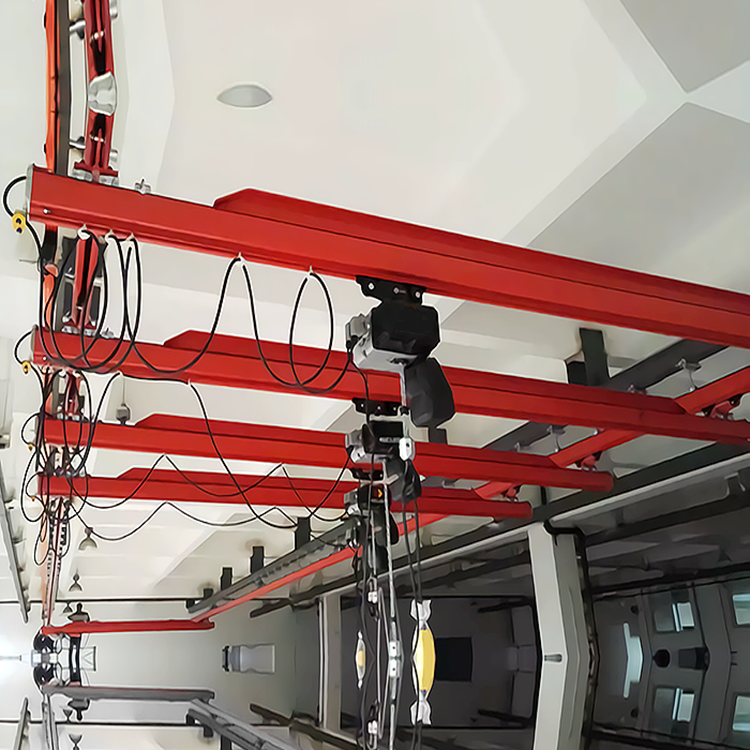

1-3.2ton Light Duty Flexible Combined Overhead Crane Suspended Kbk Bridge Crane



Technical Data

 1-3.2ton Light Duty Flexible Combined Overhead Crane Suspended Kbk Bridge Crane Paramaters:



KBK crane

Capacity(kg)

Maximum support
 spacing


80

125

250

500

1000

1600

2000

100

Span

2.9

2.6






Main beam length

3.0

3.0






I

Span

4.7

4.6

2.9

1.6(F)




Main beam length

6.0

5.0

3.0

2.0




II-L

Span

7.4(D)

7(D)

6.1

3.7

1.75(D)



Main beam length

8.0

8.0

7.0

4.0

2.0



II

Span

7.75(F)

7.75(D)

7.45(D)

6.0

3.5(D)



Main beam length

8.0

8.0

8.0

7.0

4.0



II-H

Span


10.5

10.5

9.3

6.5



Main beam length


14.0

13.0

11.0

7.0



III

Span




8.4

6.3

4.3

3.6(D)

Main beam length




9.0

7.0

5.0

4.0

(D)Double trolley device








(F)Four trolley device
