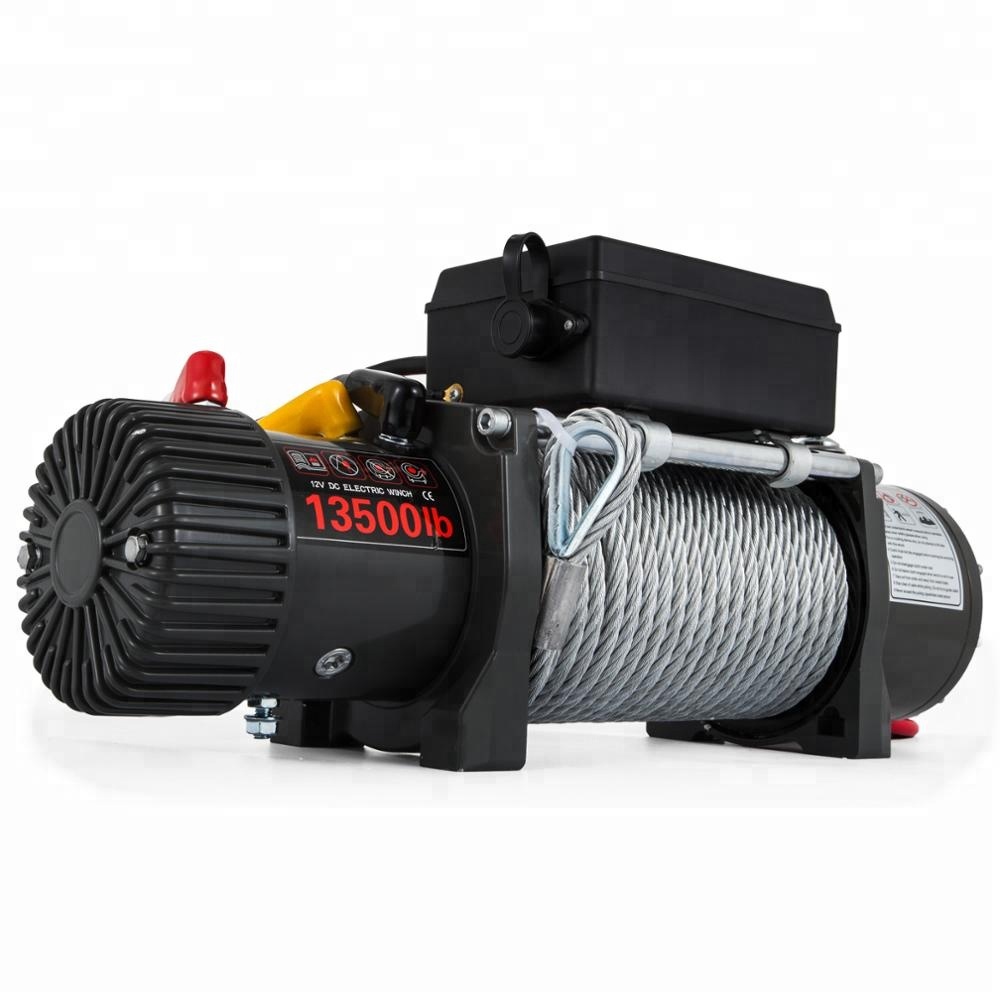

12v 4x4 Electri Winch 13500lb - Steel Cable - Two Remotes

Features

Brand new with top quality

13500 LB electric winch

Single line rated pull

Fits ATV, UTV

Series wound motor

3 stage planetary gear train

Super heavy duty 4-way roller fairlead

With two wireless remote controls

Easy to use with maximum safety

Fast line speed and sure hold

Fast line-out without using electric power

Longer life and better performance

Fast, powerful and reliable

Especially optimised for recovery use

Guaranteed for 24 months

Technical

Product Type: 12V Electric Winch

Rated Line Pull: 13500 lb (6123.5 kg) Single Line

Motor: 6.5hp/4.8kw 12V, Series Wound Motor

Gear Train: 3 Stage Planetary

Gear Reduction Ratio: 265:1

Clutch: Sliding Ring Gear 180°

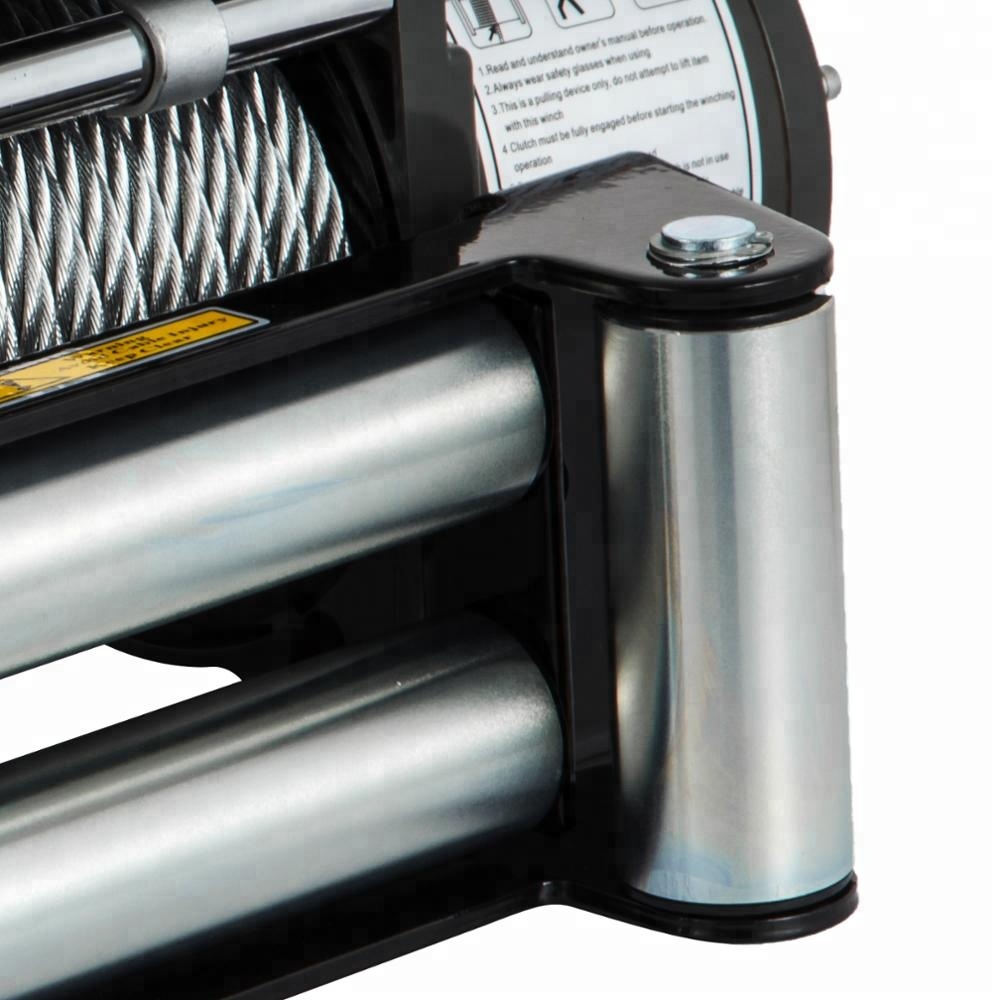

Fairlead: 4-Way Roller Fairlead

Cable(Dia. x L): 3/8 inch x 92 ft (9.5 mm x 27 m)

Drum Size: 2.51 x 8.82 inch (6.4 x 22.4 cm)

Overall Dimensions: 21.5 x 6.3 x 8.7 inch (54.6 x 16 x 22.2 cm)

Duty Cycle: Intermittently

Mounting Bolt Pattern: 10 x 4.5 inch (25.4 x 11.43 cm)

Placement on Vehicle: Front, Rear

Package Size: 24.4 x 14.17 x 10.63 inch(62 x 36 x 27 cm)

Gross Weight: 87.72 lbs (39.79 kg)



NOTE

1. Read the instruction manual carefully before operating! Keep safety consciousness at all times.
2. Keep hands and body away from fairlead (cable intake slot) when operating.
3. Do not use winch as a hoist, do not use for transportation of people.
4. Don't operate and spool under full load over one minute continuously.
5. Do not exceed winch load weight capacity. While motor is over heating, please stop for a while to cool down.
This product is guaranteed for 24 months against defective materials and workmanship. The guarantee excludes the wire rope, damage caused by misuse, failure to follow the instructions, or submersion.
