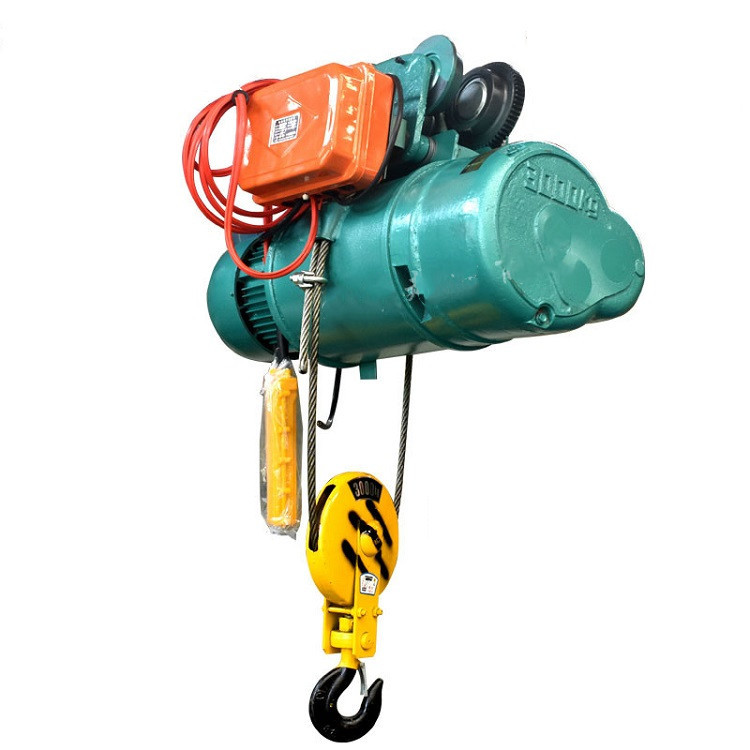

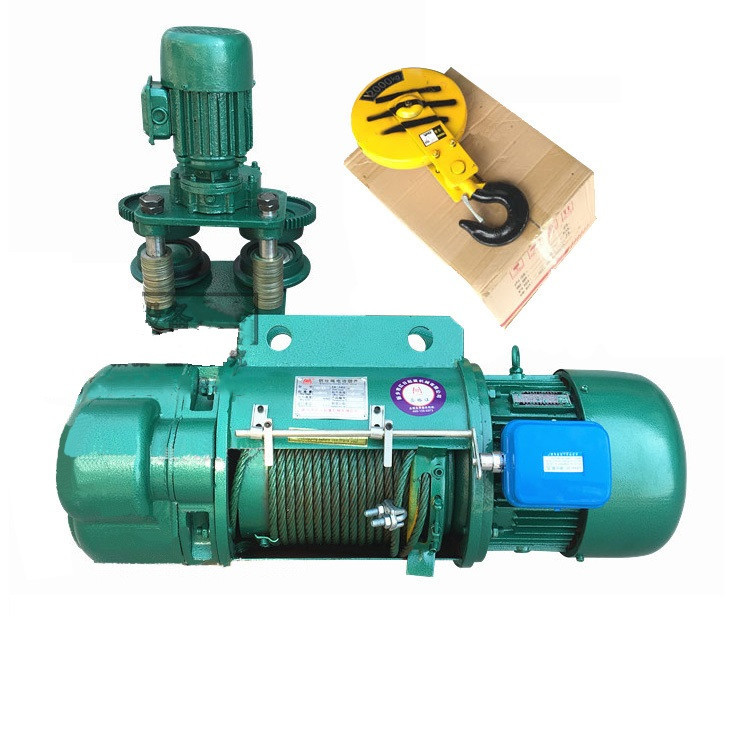

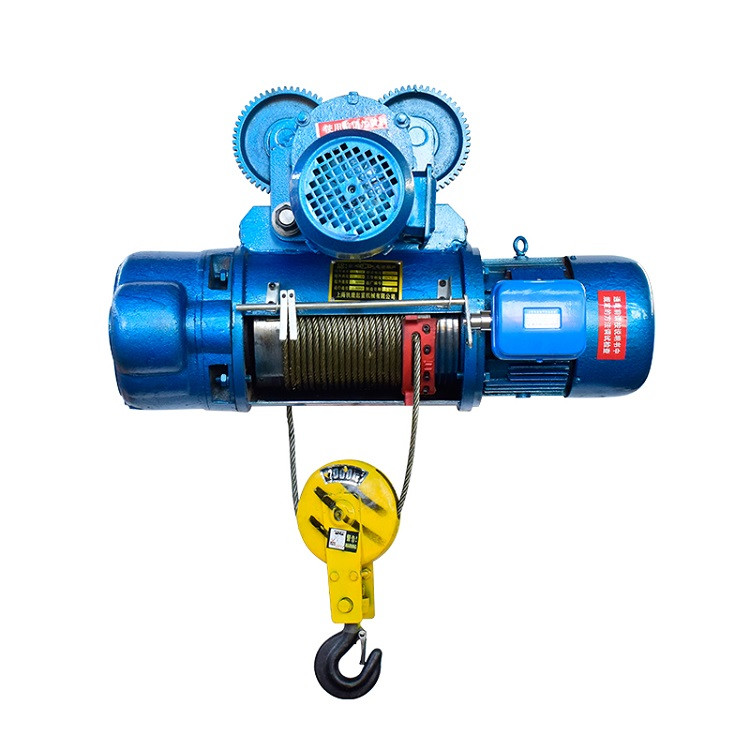

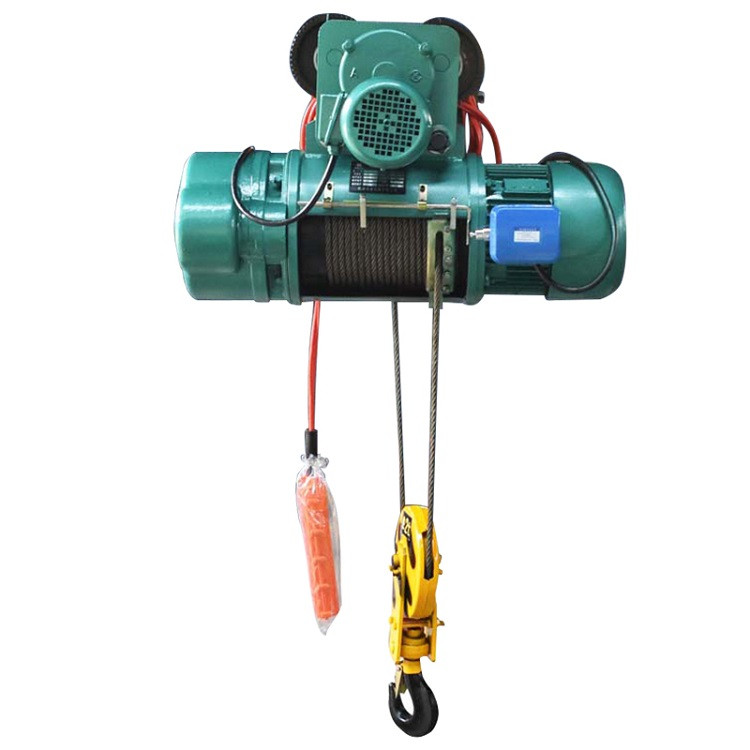

CD MD single speed double speed wire rope electric hoist

CD MD single speed double speed wire rope electric hoist

CD MD single speed double speed wire rope electric hoist
These Electric Wire Rope Hoists are widely known for easy operation and wide capacity. The hoists are available with fix suspension, geared trolley as well as power trolley. These products conform to the ISO specifications, which makes them highly reliable.

Features of the CD electric wire rope hoist:

· Low maintenance cost

· Optimum load lifting capacity

· Simple, sturdy & high rigidity frame

· Minimum deflection

· Easy installation

· Radio remote control with display and proportional

· A cost-effective design can be selected for the building

· They ensure maximum rigidity for a minimum deadweight

· Capacity: 0.5~16 tons (maximum 32 tons)

· Lift height: 6~30m(maximum 100meters)

· Lifting speed: 8/0.8 m/minutes

· Duty group: HMI H4

· Power source: Ac 380V 50Hz

· Protection degree: Ip54/Ip54

Lifting weight(t)	0.5	1	2	3	5	10
Hoisting height(m)	6-30	6-30	6-30	6-30	6-30	6-30
Hoisting speed(m/min)	8,8/0.8	8,8/0.8	8,8/0.8	8,8/0.8	8,8/0.8	7,7/0.7
Running speed(m/min)	20	20	20	20	20	20
Dia(mm)	4.8	7.7	11	13	15	15
Beam orbit(mm)	16-28b	16-28b	20-32b	20-32b	28-63b	28-63b
Running motor power(kw)	0.2	0.2	0.4	0.4	0.8	1.6
Power voltage	3P 380V 60HZ
